Product Details:
|
| Name: | Vehicle Lithium Battery | Type: | Lithium Battery, Lithium Battery |
|---|---|---|---|
| Cell: | 18650-3.6V-2500mAh | Weight: | 2.8kg |
| Application: | Electric Bicycles/Scooters, Electric Scooter | Battery Pack Size: | MAX268 *72 *21mm |
| Rechargeable: | Yes | ||
| Highlight: | 2500mAh Vehicle Lithium Battery,Vehicle Lithium Battery 2.8kg,Rechargeable Lithium Battery Pack UN38.3 |
||

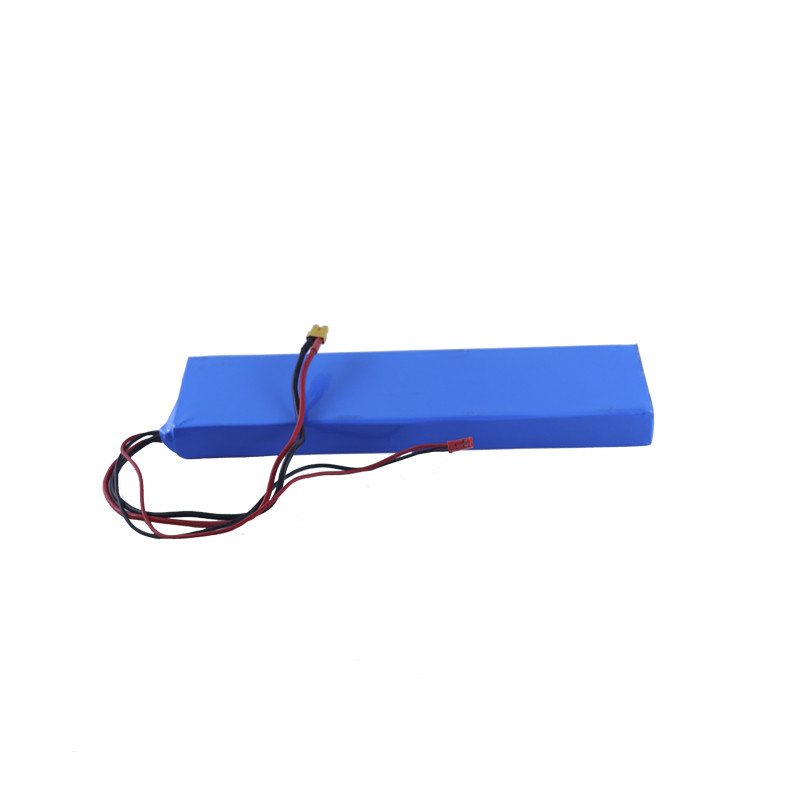

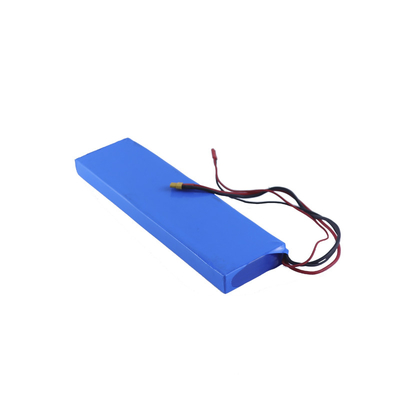

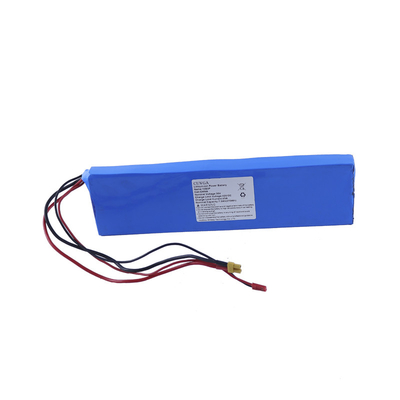

48v Rechargeable Lithium Battery 3 Years Warranty 1000 Cycles Li-Ion Battery Pack
|
Rated capacity
|
10AH(10000mAh)
|
|
Rated voltage
|
36V
|
|
Technical description
|
3.7V 18650 Cell
|
|
Unit combination
|
3-parallel 10 series
|
|
Battery size
|
40*70*280mm (± 2mm)
|
|
Weight
|
about 1.5kg
|
|
Number of batteries (parallel * series)
|
30pcs
|
|
Discharge voltage
|
30/ -1V
|
|
Charging voltage
|
42V
|
|
Rated discharge current
|
15A
|
|
Maximum instantaneous discharge current
|
30A
|
|
Maximum continuous discharge current
|
15A
|
|
Charging Mode
|
CC/CV
|
|
Standard charging current
|
2A
|
|
Charging time of standard charging current
|
5-7h
|
|
Charging temperature range
|
0-45 ℃
|
|
Discharge temperature range
|
-20-60 ℃
|
