Product Details:
|
Type: | Lithium Battery, Lithium Battery | Cell: | 18650-36V |
---|---|---|---|
Weight: | 1.5kg | Application: | Electric Bicycles/Scooters, Electric Scooter |
Name: | Vehicle Lithium Battery | Charging Voltage: | 42v |
High Light: | 1.5kg Vehicle Lithium Battery,Vehicle Lithium Battery MSDS,36v 10ah Lithium Ion Battery Pack |

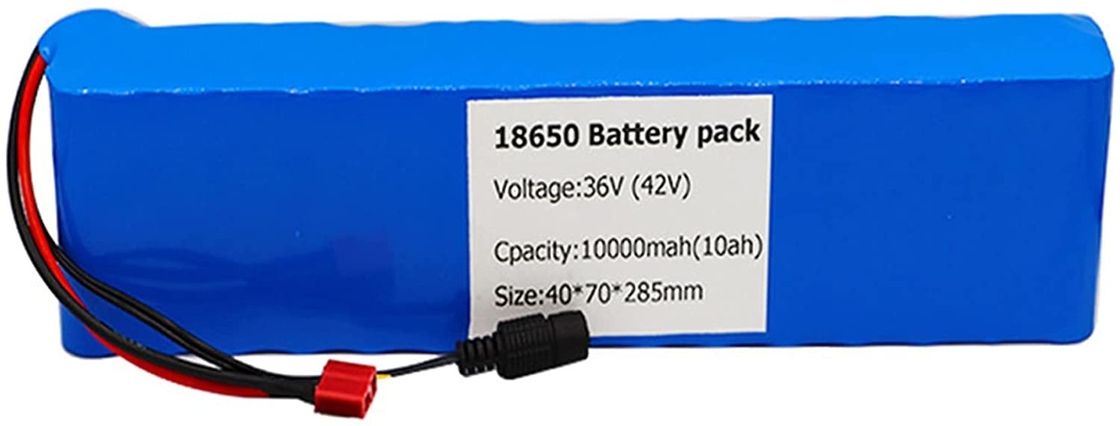

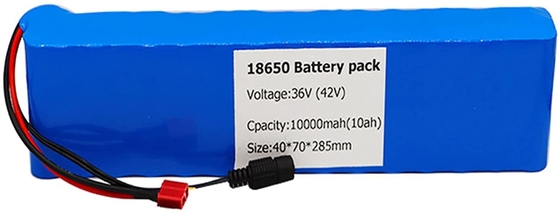

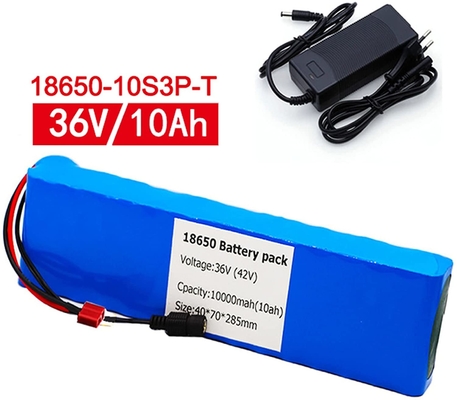

Factory directly supply 18650 lithium ion battery pack 36v 10ah
Rated capacity
|
10AH(10000mAh)
|
Rated voltage
|
36V
|
Technical description
|
3.7V 18650 Cell
|
Unit combination
|
3-parallel 10 series
|
Battery size
|
40*70*280mm (± 2mm)
|
Weight
|
about 1.5kg
|
Number of batteries (parallel * series)
|
30pcs
|
Discharge voltage
|
30/ -1V
|
Charging voltage
|
42V
|
Rated discharge current
|
15A
|
Maximum instantaneous discharge current
|
30A
|
Maximum continuous discharge current
|
15A
|
Charging Mode
|
CC/CV
|
Standard charging current
|
2A
|
Charging time of standard charging current
|
5-7h
|
Charging temperature range
|
0-45 ℃
|
Discharge temperature range
|
-20-60 ℃
|
