Product Details:
|
| Name: | Bicycle Lithium Battery | Type: | Lithium Battery, Lithium Battery |
|---|---|---|---|
| Cell: | 18650-36V | Weight: | 1.5kg |
| Application: | Electric Bicycles/Scooters, Electric Scooter | Unit Combination: | 3-parallel 10 Series |
| High Light: | 18650 Li Ion Battery Pack 48v,Li Ion Battery Pack 48v 10ah,36v Lithium Ion Battery For Electric Bike |
||

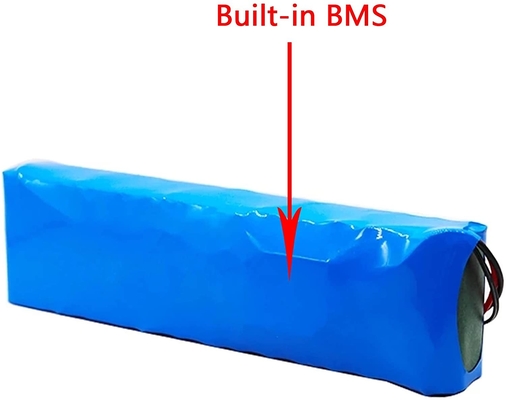

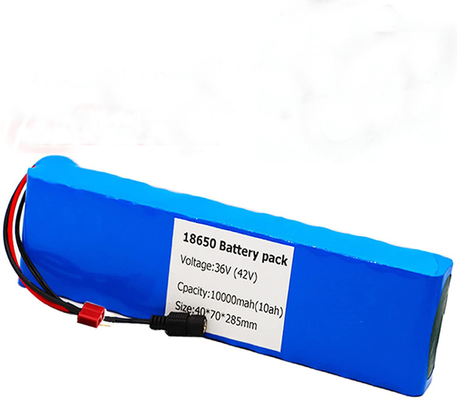

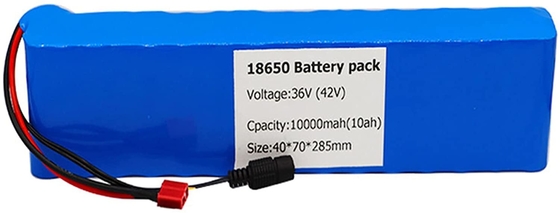

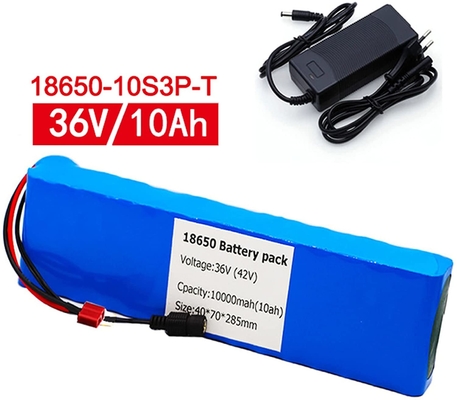

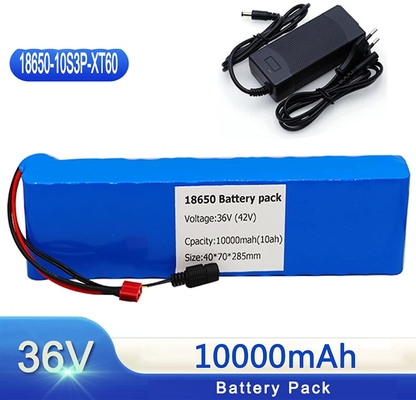

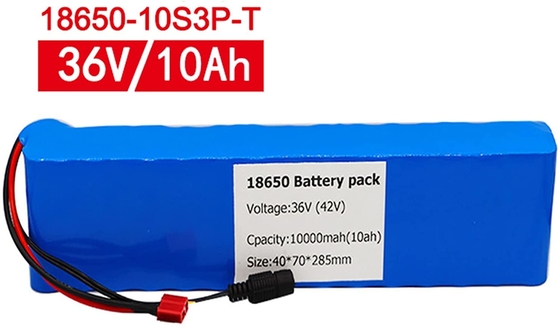

Li-ion battery pack 48v 36v 10ah lithium ion battery pack for electric bike
|
Rated capacity
|
10AH(10000mAh)
|
|
Rated voltage
|
36V
|
|
Technical description
|
3.7V 18650 Cell
|
|
Unit combination
|
3-parallel 10 series
|
|
Battery size
|
40*70*280mm (± 2mm)
|
|
Weight
|
about 1.5kg
|
|
Number of batteries (parallel * series)
|
30pcs
|
|
Discharge voltage
|
30/ -1V
|
|
Charging voltage
|
42V
|
|
Rated discharge current
|
15A
|
|
Maximum instantaneous discharge current
|
30A
|
|
Maximum continuous discharge current
|
15A
|
|
Charging Mode
|
CC/CV
|
|
Standard charging current
|
2A
|
|
Charging time of standard charging current
|
5-7h
|
|
Charging temperature range
|
0-45 ℃
|
|
Discharge temperature range
|
-20-60 ℃
|
